HAWE Directional Seated Valve GR 2-2 G24

SKU
GR 2-2 G24

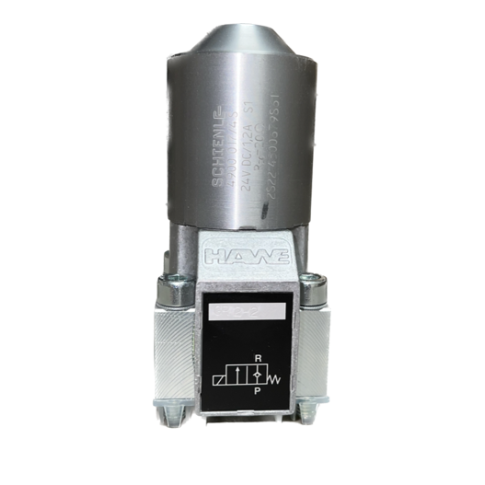

HAWE 2/2-way directional seated valve, size 2 with solenoid actuation, 24V DC. The G R2 valve is a currentless closed valve.
$624.50
Available to Ship
Specifications
  • Pmax: 500 bar
  • Qmax: 25

  • Series: G
  • Size: 2
  • Flow Pattern: R2
  • Function: 2/2-way
  • Voltage: 24V DC
  • Actuation: Solenoid

  • HAWE article # Unknown
Features and Benefits

The Hawe ("hah'-vay") G R2-2 2/2-way directional seated valve with solenoid actuation is a manifold mounting valve that uses spring-loaded balls as valve elements and does not show any leakage. The actuation element used moves the valve to the appropriate switching position using an angled lever and tappet

Connection blocks can be flange-mounted to incorporate the valves into the pipe systems. Optional additional functions in the connection blocks (e.g. pressure-limiting or bypass check valve) extend the range of applications of this valve type. It is possible to combine several valves connected in parallel in one valve bank (type VB)
